Cost Management のデータを API で取得する

azure
Published: 2025-06-05

はじめに

所有者権限を持っている複数のサブスクリプションの料金を Cost Management で集計したくなりました。ですが、私の環境では Cost Management のスコープを管理グループにしても料金が表示されません。どうも CSP サブスクリプションでも同じように Cost Management のスコープとして管理グループを利用できないようです。

CSP スコープの管理グループは、Cost Management ではサポートされません。 CSP サブスクリプションを利用していて、コスト分析でそのスコープを管理グループに設定した場合、次のようなエラーが表示されます。

スコープを理解して使用する

「それなら API 直叩きで情報を取得して CSV ファイルを生成してからの Excel で集計すればいいじゃない」という発想で調べた結果をまとめます。

実践

開発者ツールを開きながら Cost Management の画面を操作すると、Cost Management に表示されている情報が次の API で取得されていることが分かります。

Query - Usage

この API を使う際には、「こんな観点で集計した情報をくれ」という情報を含む JSON を送信する必要があります。

例えば、今月のリソースグループ毎の料金を取得したい場合には、次のような JSON を送信する必要があります。

$uri = "https://management.azure.com/subscriptions/SUBSCRIPTION-ID/providers/Microsoft.CostManagement/query?api-version=2021-10-01"

$body = @"
{
  "type": "Usage",
  "timeframe": "BillingMonthToDate",
  "dataset": {
    "granularity": "None",
    "aggregation": {
      "totalCost": {
        "name": "Cost",
        "function": "Sum"
      },
      "totalCostUSD": {
        "name": "CostUSD",
        "function": "Sum"
      }
    },
    "grouping": [
      {
        "type": "Dimension",
        "name": "ResourceGroup"
      }
    ]
  }
}
"@
Invoke-AzRestMethod -Uri $uri -Payload $body -Method POST

次のような情報が返ってきます。rows に含まれる配列に金額と集計要素であるリソースグループ名が含まれているので、split で分解すれば Powershell スクリプト内で利用できます。

StatusCode : 200
Content    : {
               "id": "subscriptions/SUBSCRIPTION-ID/providers/Microsoft.CostManagement/query/422dff96-5e67-41f5-9182-510fa62f5970",
               "name": "422dff96-5e67-41f5-9182-510fa62f5970",
               "type": "Microsoft.CostManagement/query",
               "location": null,
               "sku": null,
               "eTag": null,
               "properties": {
                 "nextLink": null,
                 "columns": [
                   {
                     "name": "Cost",
                     "type": "Number"
                   },
                   {
                     "name": "CostUSD",
                     "type": "Number"
                   },
                   {
                     "name": "ResourceGroup",
                     "type": "String"
                   },
                   {
                     "name": "Currency",
                     "type": "String"
                   }
                 ],
                 "rows": [
                   [
                     0.075844,
                     0.075844,
                     "",
                     "USD"
                   ],
                   [
                     5.96752666600773,
                     5.96752666600773,
                     "acs",
                     "USD"
                   ],
                   [
                     0.97,
                     0.97,
                     "rg-nsp-eval",
                     "USD"
                   ],
                   [
                     38.3369490781043,
                     38.3369490781043,
                     "test",
                     "USD"
                   ]
                 ]
               }
             }

任意の期間の料金を取得したい場合には、timeframe を Custom にしたうえで timePeriod で From と To を指定します。

$body = @"
{
  "type": "Usage",
  "timeframe": "BillingMonthToDate",
  "timePeriod": {
    "from":"2025-05-01T00:00:00+00:00",
    "to":"2025-05-15T23:59:59+00:00"
  },
  "dataset": {
    "granularity": "None",
    "aggregation": {
      "totalCost": {
        "name": "Cost",
        "function": "Sum"
      },
      "totalCostUSD": {
        "name": "CostUSD",
        "function": "Sum"
      }
    },
    "grouping": [
      {
        "type": "Dimension",
        "name": "ResourceGroup"
      }
    ]
  }
}
"@

リソースごとの料金が必要であればこんな感じです。grouping の中の Dimension を集計したい要素に変えれば OK です。

$body = @"
{
    "type": "ActualCost",
    "timeframe": "BillingMonthToDate",
    "dataSet": {
        "granularity": "None",
        "aggregation": {
            "totalCost": {
                "name": "Cost",
                "function": "Sum"
            },
            "totalCostUSD": {
                "name": "CostUSD",
                "function": "Sum"
            }
        },
        "grouping": [
            {
                "type": "Dimension",
                "name": "ResourceId"
            }
        ]
    }
}
"@

今現在の料金を取得したければ、次のような形になります。

$body=@"
{
    "type": "ActualCost",
    "timeframe": "BillingMonthToDate",
    "dataSet": {
        "granularity": "None",
        "aggregation": {
            "totalCost": {
                "name": "Cost",
                "function": "Sum"
            },
            "totalCostUSD": {
                "name": "CostUSD",
                "function": "Sum"
            }
        }
    }
}
"@

次のように rows の配列の中に1つだけ値が存在した結果が返ってきます。

StatusCode : 200
Content    : {
               "id": "subscriptions/SUBSCRIPTION-ID/providers/Microsoft.CostManagement/query/9a276f98-cb71-43cf-812f-ec26bb86b5fc",
               "name": "9a276f98-cb71-43cf-812f-ec26bb86b5fc",
               "type": "Microsoft.CostManagement/query",
               "location": null,
               "sku": null,
               "eTag": null,
               "properties": {
                 "nextLink": null,
                 "columns": [
                   {
                     "name": "Cost",
                     "type": "Number"
                   },
                   {
                     "name": "CostUSD",
                     "type": "Number"
                   },
                   {
                     "name": "Currency",
                     "type": "String"
                   }
                 ],
                 "rows": [
                   [
                     152.06505596681,
                     152.06505596681,
                     "USD"
                   ]
                 ]
               }
             }

GUI 上で確認できる料金は $152 なので、意図した情報を取れています。

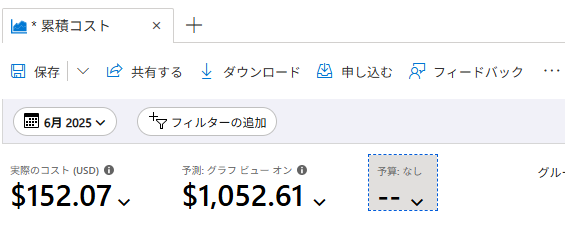

Cost Management 上での現時点での料金

JSON の dataSet 内にどのような値を入れればいいかは、見たい操作を GUI で行いつつ、開発者ツールを使って送信された値を確認するのが楽です。

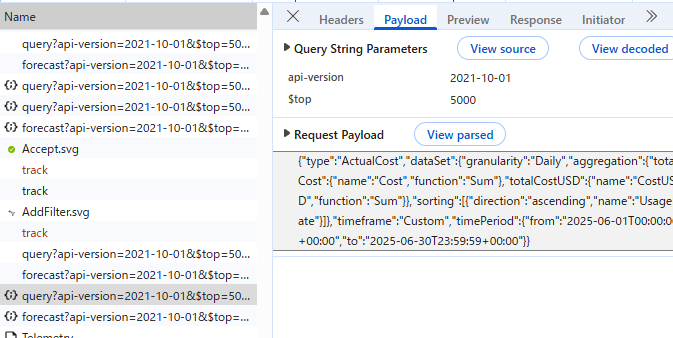

開発者ツールでの確認

今月の日次の利用料金を取得した場合には次のような JSON が飛んでいました。

$body = @"
{
    "type": "ActualCost",
    "dataSet": {
        "granularity": "Daily",
        "aggregation": {
            "totalCost": {
                "name": "Cost",
                "function": "Sum"
            },
            "totalCostUSD": {
                "name": "CostUSD",
                "function": "Sum"
            }
        },
        "sorting": [
            {
                "direction": "ascending",
                "name": "UsageDate"
            }
        ]
    },
    "timeframe": "Custom",
    "timePeriod": {
        "from": "2025-06-01T00:00:00+00:00",
        "to": "2025-06-30T23:59:59+00:00"
    }
}
"@

この JSON を送信すると、次のような日付毎の金額を含む配列が返ってきます。rows に含まれる配列に金額と日付が含まれているので、split で分解すれば Powershell スクリプト内で利用できます。

StatusCode : 200
Content    : {
               "id": "subscriptions/SUBSCRIPTION-ID/providers/Microsoft.CostManagement/query/2421de4a-24cc-442f-8882-b34165403975",
               "name": "2421de4a-24cc-442f-8882-b34165403975",
               "type": "Microsoft.CostManagement/query",
               "location": null,
               "sku": null,
               "eTag": null,
               "properties": {
                 "nextLink": null,
                 "columns": [
                   {
                     "name": "Cost",
                     "type": "Number"
                   },
                   {
                     "name": "CostUSD",
                     "type": "Number"
                   },
                   {
                     "name": "UsageDate",
                     "type": "Number"
                   },
                   {
                     "name": "Currency",
                     "type": "String"
                   }
                 ],
                 "rows": [
                   [
                     35.246181365791,
                     35.246181365791,
                     20250601,
                     "USD"
                   ],
                   [
                     35.1927764530089,
                     35.1927764530089,
                     20250602,
                     "USD"
                   ],
                   [
                     37.5482007207832,
                     37.5482007207832,
                     20250603,
                     "USD"
                   ],
                   [
                     39.6806796582235,
                     39.6806796582235,
                     20250604,
                     "USD"
                   ],
                   [
                     2.78708736921931,
                     2.78708736921931,
                     20250605,
                     "USD"
                   ]
                 ]
               }
             }

まとめ

Cost Management のデータを API 経由で取得する方法をまとめました。地味ですが意外と使いどころありそうな気がしています。
